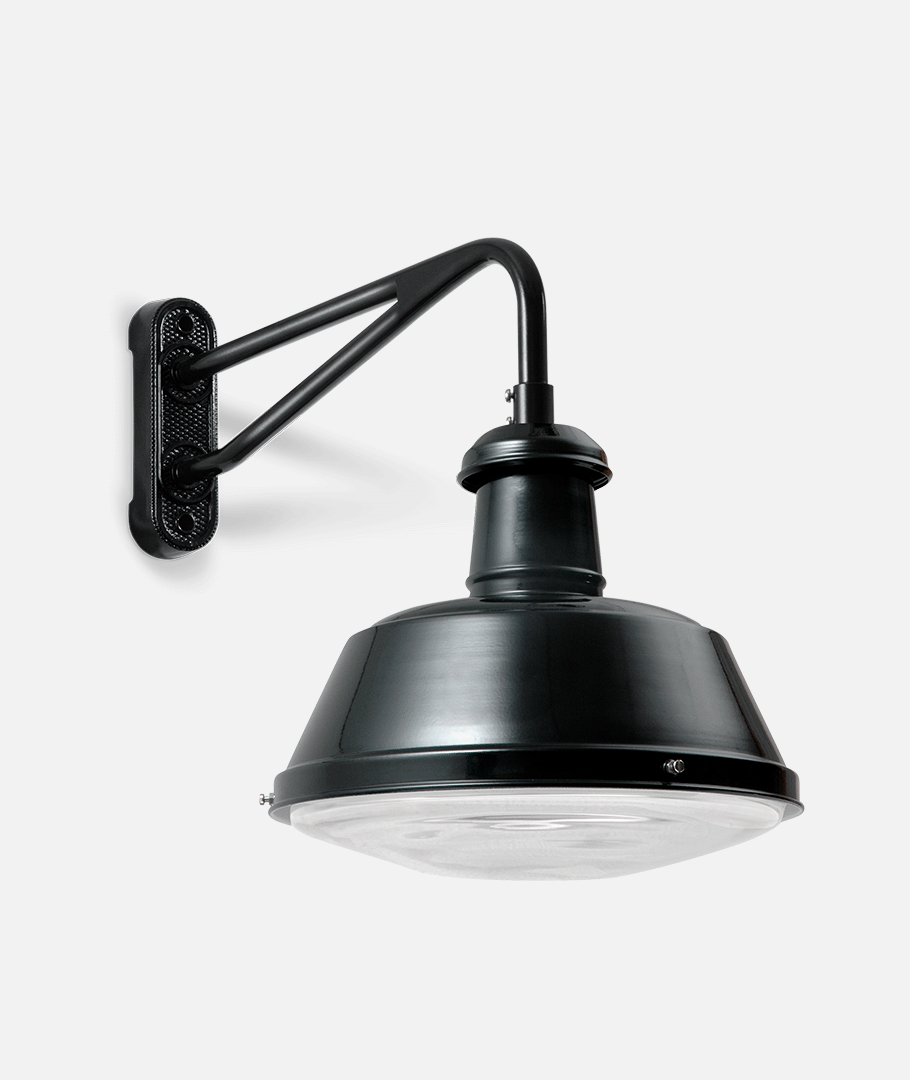

Berlin Glas - Wall Lamp, ebolicht_berlin_glas_wand Berlin Glas - Wall Lamp,

Berlin Glas - Wall Lamp, Berlin Glas Wand

Berlin Glas - Wall Lamp,

Reflector-⌀ 315 mm, made of high-quality stainless aluminium, jet black outside, traffic white inside, with clear glass cover, complete with aluminium wall bracket double tube vertical 400 mm, wired into the cast aluminium rosette ready for connection. With high-quality porcelain socket E27, for lamps up to max. 100 watts.

ebolicht_logo

A closed lamp with reflector in a flattened cone shape, clear glass cover and wall bracket. Made from traditionally manufactured cast and pressed parts as well as individual porcelain elements. It is characterised by its timeless design and its particularly wide range of applications. The glass cover gives the luminaire a particularly compact look and creates a pleasantly diffuse light.

Lamp-⌀ / Lamp height with glass without wall bracket / Glass-⌀

315 mm / 270 mm / 300 mm
415 mm / 375 mm / 400 mm

Aluminium

Raw - A/R

Raw - A/R

Clear lacquer matt - A/M

Clear lacquer matt - A/M

Clear lacquer glossy - A/G

Clear lacquer glossy - A/G

Pure white - A/W

Pure white - A/W

Jet black - A/S

Jet black - A/S

RAL - A/RAL ….

RAL - A/RAL ….

Copper

Raw - K/R

Raw - K/R

Clear lacquer matt - K/M

Clear lacquer matt - K/M

Clear lacquer glossy - K/G

Clear lacquer glossy - K/G

Branded, clear lacquer matt + decorative holes - K/GMZ

Branded, clear lacquer matt + decorative holes - K/GMZ

Branded, clear lacquer glossy + decorative holes - K/GGZ

Branded, clear lacquer glossy + decorative holes - K/GGZ

Patinated - K/P

Patinated - K/P

Wall Brackets

Single tube vertical

Length / Order no.

300 mm / W130
350 mm / W135
400 mm / W140
450 mm / W145
500 mm / W150
600 mm / W160
700 mm / W170

Single tube vertical

Double tube vertical

Length / Order no.

300 mm / W330
350 mm / W335
400 mm / W340
450 mm / W345
500 mm / W350
600 mm / W360
700 mm / W370

Double tube vertical

Single tube curved large

Length / Order no.

370 mm / W1600

Single tube curved large

Rosettes

Round rosette

100 mm

Round rosette

Corner rosette

145 x 125 mm

Corner rosette

Wave rosette

110 mm

Wave rosette

e-27

ce
230v_50hz
pruefzeichen
ip_20
aussenbereich
